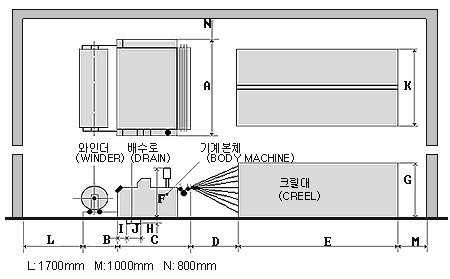

¢Ã STANDARD SPECIFICATIONS REED SPACE 1300mm(51.2in) 2350mm(92.5in) 1500(59.1in) 2500mm(98.4in) 2100MM(82.7in) 2600(102.4in) 2200mm(86.7in) 2800(110.2in) Manufactured by order FRAME Box type DRIVING Main Motor : 2.2kw Control Motor : 1.8Kw Heater Cutter : 1Kw BEATING Crank Type SHEDDING Tappet Shedding for 2, 4 Heald frames LET-OFF LET MOTION Creel System Option : Beam System WINDING Attachment of automatic ally tention-controlled motor Maximum winding Dia : 1000mm WEFT SUPPLY Machanical Type Measuring and Freeding System Option : Electronic Type Measuring and Freeding System STOP MOTION Electronic System Weft Stop Motion Option : Electrical Warp Stop Motion ¢Ã R.P.M SS-HL 1300 350-800 RPM 8¸ñ±âÁØ(25.4mm*8) SS-HL 1500 350-800 RPM 8¸ñ±âÁØ(25.4mm*8) SS-HL 2100 350-750 RPM 8¸ñ±âÁØ(25.4mm*8) SS-HL 2200 350-750 RPM 8¸ñ±âÁØ(25.4mm*8) SS-HL 2350 350-750 RPM 8¸ñ±âÁØ(25.4mm*8) SS-HL 2500 350-700 RPM 8¸ñ±âÁØ(25.4mm*8) SS-HL 2600 350-700 RPM 8¸ñ±âÁØ(25.4mm*8) SS-HL 2800 350-700 RPM 8¸ñ±âÁØ(25.4mm*8) ¢Ã DENIER 800-1200 Denier 600-750 RPM Standard Specifications 1300-10000 Denier 350-500 RPM Standard Specifications ¢Ã MACHINE DIMENSIONS A B C D E F SS-HL 1300 2490 1120 1700 1800 3410 1860 SS-HL 1500 2690 1120 1700 1800 4070 1860 SS-HL 2100 3290 1120 1700 1800 4510 1860 SS-HL 2200 3390 1120 1700 1800 4510 1860 SS-HL 2350 3540 1120 1700 1800 4950 1860 SS-HL 2500 3690 1120 1700 1800 5170 1860 SS-HL 2600 3790 1120 1700 1800 5390 1860 SS-HL 2800 4150 1280 1960 2100 5390 1860   G H I J K Basic SS-HL 1300 2150 150 260 400 1250 540 SS-HL 1500 2150 150 260 400 1250 648 SS-HL 2100 2150 150 260 400 2240 1080 SS-HL 2200 2150 150 260 400 2240 1080 SS-HL 2350 2150 150 260 400 2240 1188 SS-HL 2500 2150 150 260 400 2240 1242 SS-HL 2600 2150 150 260 400 2240 1296 SS-HL 2800 2375 150 260 400 2240 1440
